Auslegung einer Heiz-/Kühldecke in einem Gewerbebau

Project description

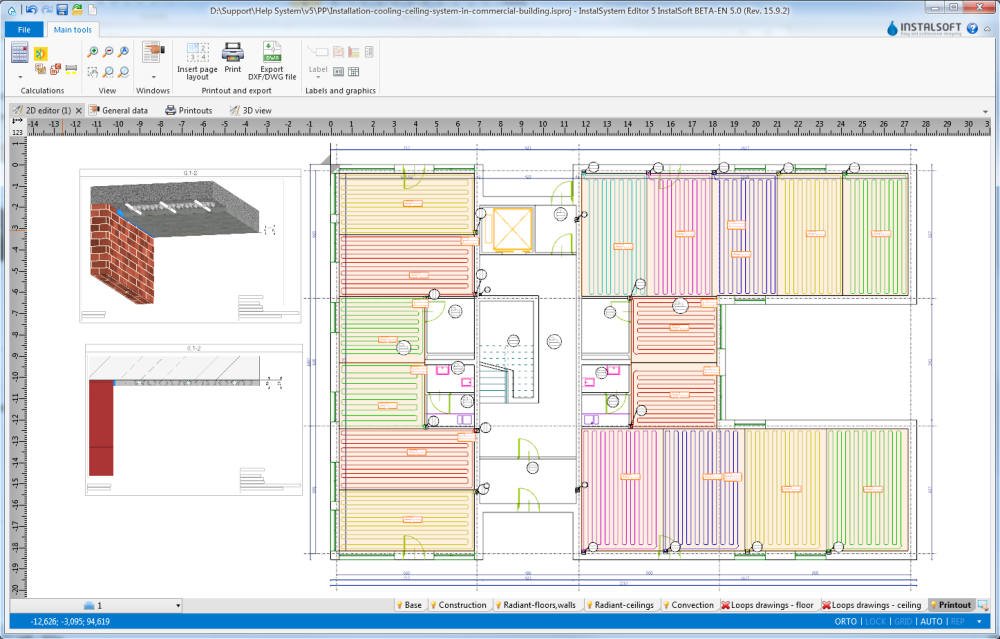

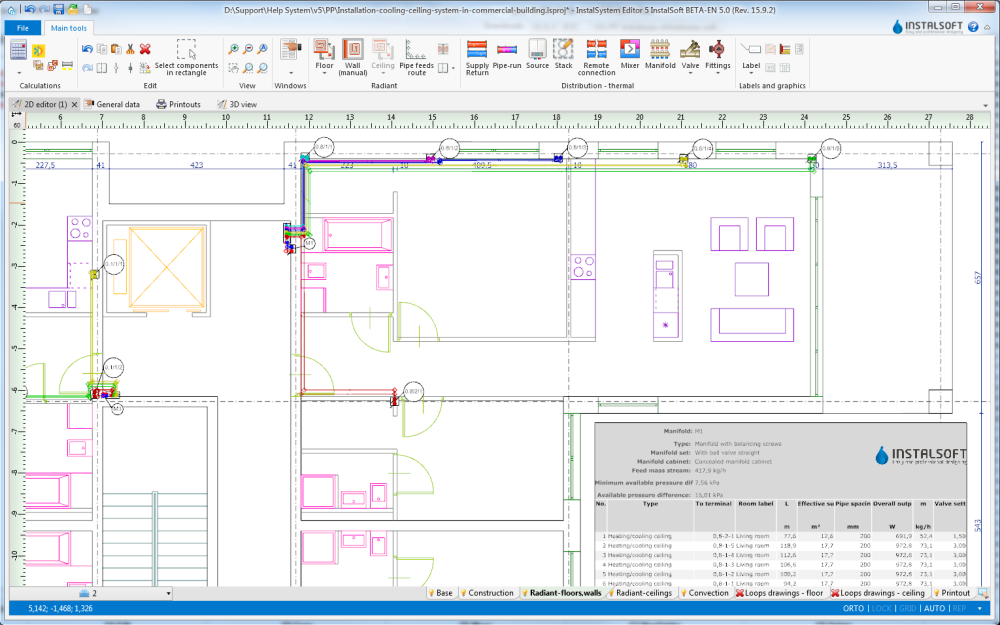

Example illustrates radiant ceiling heating and cooling systems located in 3-storey building with basement.

SAMPLE PROJECT IN INSTALSYSTEM
Project files How to calculate downloaded file?	Installation with ceiling heating and cooling system in commercial building, isproj
Designed with	InstalSystem 5 Rev. Beta 22
Required modules	InstalSystem basis Heating system 5 Radiant loop systems 5 Radiant cooling systems 5
Project range	Radiant heating and cooling
Used catalogues	Basic radiant systems Brass and steel pipe couplings and fittings Copper pipes and fittings EN 1057 Miscellaneous fittings of any make Standard insulation catalogue Neutral valves catalogue-typical construction
Type of building	commercial building with basement 3-storey
Building structure	Base basement, dwg Base ground floor, dwg Base first floor, dwg
Drawings range	Plan view
Prepared by	www.instalsoft.com
Legal disclaimer	The whole file or parts of the project may be copied
Calculation results	Full printout, xls Full printout, pdf General heating and cooling results, pdf Bill components, pdf Installation parameters, pdf
Drawing results	Basement, dwg Ground floor, dwg First floor, dwg Basement, pdf
